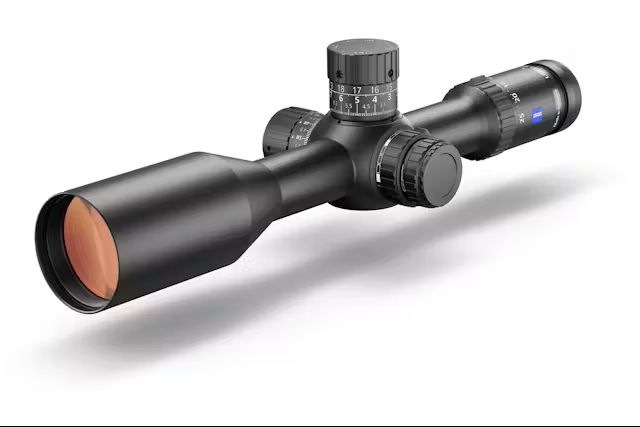

Zeiss LRP S5 5-25×56

Kan også bestilles med retikkel #17 /ZF-MOAi





Magnification

5 – 25 ×

Effective lens diameter

56 mm

Light transmission

90%

Exit pupil diameter

9.2 – 2.4 mm

Twilight factor

16.7 – 37.4

Field of view at 100 m (yds)

7.5 – 1.5 m (23 – 5 ft)

Objective viewing angle

4.3° – 0.8°

Diopter adjustment range

+ 2.0 | − 3.0 dpt

Eye relief

90 mm (3.54 “)

Parallax setting

25 m – ∞ (27 yds – ∞)

Vertical adjustment range at 100 m

40,7 MRAD | 140 MOA

Lateral adjustment range at 100 m

24 MRAD | 60 MOA

Adjustment per click at 100 m

0,1 MRAD | 0,25 MOA

Centre tube diameter

34 mm

Eyepiece tube diameter

46 mm

Objective tube diameter

62 mm

Features
LotuTec | Nitrogen filled

+ | +

Water resistance

400 mbar

Physical
Operating temperature

− 25°C | + 56°C (− 13°F | + 133°F)

Length

396 mm (15.6 “)

Weight (without inner rail)

1.030 g (36.3 oz)
