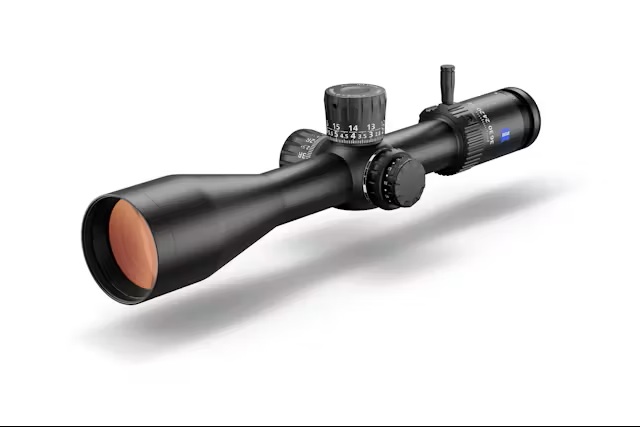

Zeiss LRP S3 6-36×56

Kan også bestilles med retikkel #17 /ZF-MOAi





Magnification

6 – 36 ×

Effective lens diameter

56 mm

Light transmission

90%

Exit pupil diameter

8.8 – 1.6 mm

Twilight factor

17.7 – 44.9

Field of view at 100 m (yds)

6.8 – 1.1 m (20.4 – 3.3 ft)

Objective viewing angle

3.9° – 0.6°

Diopter adjustment range

+ 3.0 | − 3.0 dpt

Eye relief

80 – 90 mm (3.0 – 3.5 “)

Parallax setting

10 m – ∞ (10.9 yds – ∞)

Vertical adjustment range at 100 m

32.0 MRAD | 110 MOA

Lateral adjustment range at 100 m

14.6 MRAD | 50 MOA

Adjustment per click at 100 m

0.1 MRAD | 0.25 MOA

Centre tube diameter

34 mm

Eyepiece tube diameter

45 mm

Objective tube diameter

65 mm

Features
LotuTec | Nitrogen filled

+ | +

Water resistance

400 mbar

Physical
Operating temperature

− 25°C | + 56°C (− 13°F | + 133°F)

Length

384 mm (15.1 “)

Weight (without inner rail)

1107 g (39.1 oz)
